Minimum Drum Diameter For Wire Rope

Table for value of constant.

Minimum drum diameter for wire rope.

Performance of wire rope in a machine is affected by design of its sheaves and drums. 1 5 x d or d x 2 sheave throat angle. Because there are many different types of equipment and many different operating conditions it is difficult to identify the one specific size of sheave or drum. If the loads are light or the speed slow smaller sheaves and drums can be used without causing early fatigue of the wires than if the loads are.

Sheave design is critical to wire rope service life bending wire rope over sheaves and drums. The following are recommended values. The severity of these stresses are directly related to the rope load and the d d ratio or the ratio of the tread diameter of the sheave or drum d to the diam eter of the rope d. The bend radius of the rope is approximately half of the minimum recommended pulley tread diameter.

In general the larger the size of the drum or pulley with respect to the wire diameter the longer the service life. Sheave and drum diameter all wire ropes operating over sheaves and drums are subjected to bending stresses which eventu ally cause the wire rope to fatigue. B diameter of drum in inches or mm c width of drum between flanges in inches or mm k π 12 d2 when capacity is required in feet k π 1000 d2 when capacity is required in meters k constant for a given wire rope diameter as per table below and d rope diameter in inches or mm. The formula below may be used to calculate reel capacities with at least one wire rope diameter below the flange diameter for clearance x.

1 over the actual wire rope diameter groove depth h. Due to tolerances on diameters and variety of constructions of wire rope it is difficult to calculate the maximum length of wire rope that can be spooled on a reel or drum. The tables below provide the minimum recommended pulley diameter. Sheave dimensions we recommend only sheaves made of steel or cast steel.

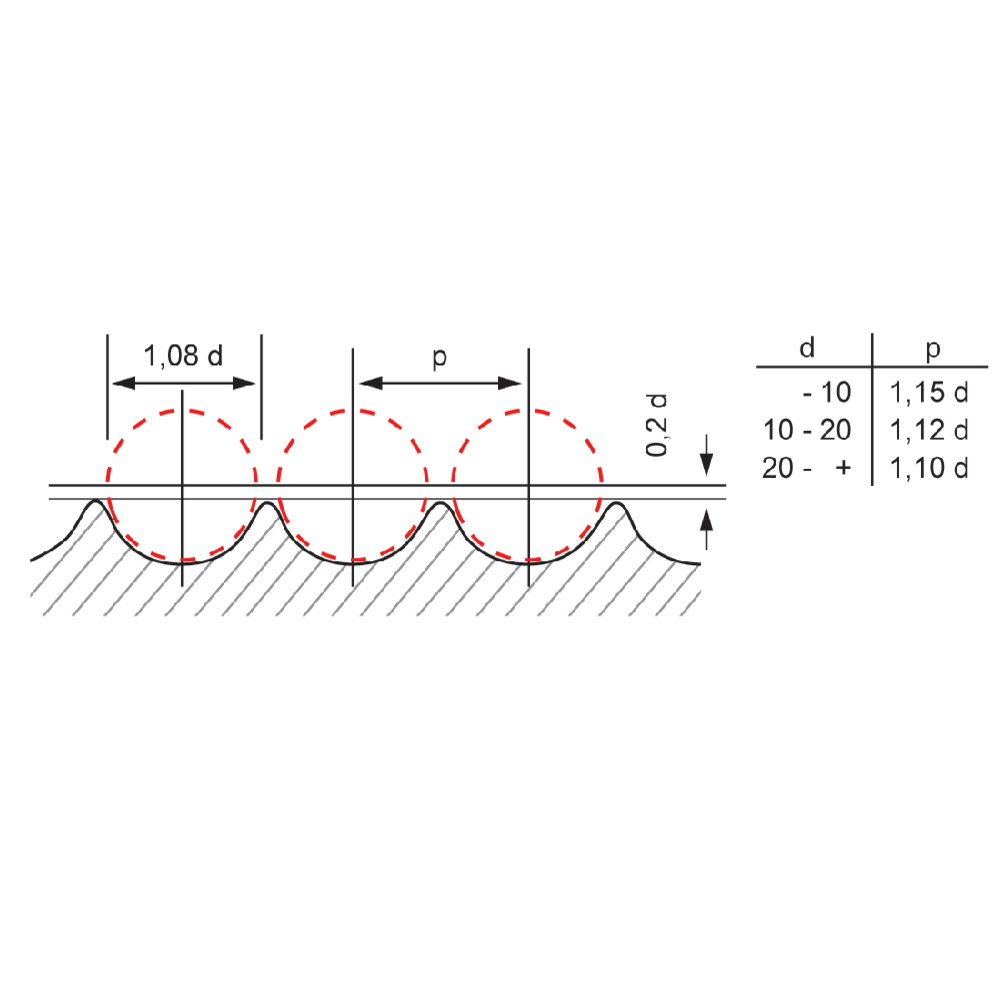

2086 exchange drive st. Information about design of sheave and drum diameter the shape of the groove profiles and corresponding radius the drum pitch and the fleet angle is given in this article. Sheaves drums and rollers must be of a correct design if optimum service is to be obtained from both the equipment and the wire rope. Charles missouri 63303 866 852 9714.
